LSZH Sheath GJXH FTTH Fiber Optic Cable G652D/G657A 1 Core Single Mode

Sichuan Aitong Wire & Cable, Inc.
Contact Now

LSZH Sheath GJXH FTTH Fiber Optic Cable G652D/G657A 1 Core Single Mode

  • 1
  • 2

Brand Name : Aitong

Model Number : GJXH 1 core

Certification : ISO9001/ISO14001/ISO25001

Place of Origin : China

MOQ : Negotiable

Price : $0.02-0.04/meter

Payment Terms : L/C, T/T, T/T, Western Union, MoneyGram

Supply Ability : 150000KM/mouth

Delivery Time : 5-8days

Packaging Details : wooden drum

Application : FTTX,FTTH FTTB FTTX Network,Telecom

Fiber type : G657A2,G652D

Color : Black,black/white,White or as required

Type : Butterfly Drop,Self-supporting

Strength member : FRP, KFRP, Metal

Length : 1km or 2km,Customized

Outer sheath : PVC/LSZH

Operating temperature : -40℃- +70℃

Contact Now

LSZH Sheath GJXH FTTH Fiber Optic Cable G652D/G657A 1 Core Single Mode

Detailed Product Description

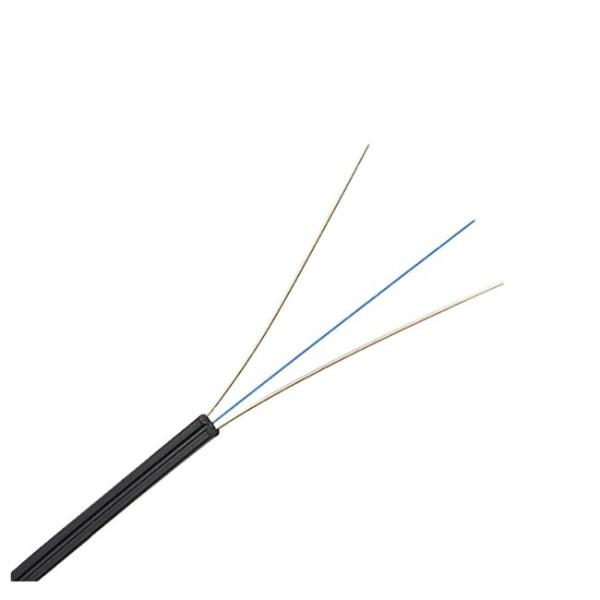

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced steel wires(or FRP) are placed at the two sides.Then the cable is completed with a black or other color LSZH sheath.

Application

1. Adopted to indoor cabling system,especially used for FTTH.

2. As pigtail and patch cords of communication equipment.

3. Used in optical connections in optical communication rooms and optical distrubution frames.

Characteristics


1. 250um Fiber.
2. Steel wire/FRP/KFRP.
3. LSZH sheath.

General Specifications:

Cable Type FTTH(Drop Cable)
Fiber Type SM G657A1/ SM G657A2
Application FTTH, LAN
Recommended installation methods Aerial
Environment Indoor
Temperature Range -40℃ to 70℃

Fiber Specifications:

Fiber style Unit SM
G652D
SM
G657A1
SM
G657A2
condition nm 1310/1550 1310/1550 1310/1550
attenuation dB/km ≤0.36/0.23 ≤0.35/0.21 ≤0.35/0.21
Dispersion 1310nm Ps/(nm*km) ≤18 ≤18 ≤18
1550nm Ps/(nm*km) ≤22 ≤22 ≤22
Zero dispersion wavelength nm 1312±10 1312±10 1300-1324
Zero dispersion slope ps/(nm²×Km) ≤0.091 ≤0.090 ≤0.092
PMD Maximum Individual Fiber [ps/√km] ≤0.2 ≤0.2 ≤0.2
PMD Design Link Value ps/(nm²×Km) ≤0.08 ≤0.08 ≤0.08
Fiber cutoff wavelength λc nm ≧1180,≤1330 ≧1180,≤1330 ≧1180,≤1330
Cable cutoff wavelength λcc nm ≤1260 ..... .....
MFD 1310nm um 9.2±0.4 9.0±0.4 9.8±0.4
1550nm um 10.4±0.8 10.1±0.5 9.8±0.5
Step(mean of bidirectional measurement) dB ≤0.05 ≤0.05 ≤0.05
Irregularities over fiber length and point discontinuity dB ≤0.05 ≤0.05 ≤0.05
Difference backscatter coefficient dB/km ≤0.03 ≤0.03 ≤0.03
Attenuation uniformity dB/km ≤0.01 ≤0.01 ≤0.01
Cladding diameter um 125.0±0.1 124.8±0.1 124.8±0.1
Cladding non-circularity % ≤1.0 ≤0.7 ≤0.7
Coating diameter um 242±7 242±7 242±7
Coating/chaffinch concentrically error um ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0
Core/cladding concentricity error um ≤0.6 ≤0.5 ≤0.5
Curl(radius) um ≥4 ≥4 ≥4

LSZH Sheath GJXH FTTH Fiber Optic Cable G652D/G657A 1 Core Single Mode

Standard Color Identification of Fiber

No. 1 2 3 4
Color Blue Orange Green Brown

Cable Design

Item Description
Model No GJXH/GJFXH
1. Fiber count 1 Core , 2 Core, 4 Core
2. Cable Diameter 3.0*2.0mm
3. Cable Weight 11.5KGS/9.5KGS
4. Strength member
- Material Steel/FRP
- Diameter 0.45mm
5. Outer Sheath
- Material LSZH (Black/white)
6. Sheath marking
- Type of marking Laser printing

Packing

Items Description
Cable length 1KM or 2KM per reel
Package material drum+carton
Package size 1KM 31.5*21*32.5cm
2KM 34.5*28*35cm

FAQ

Q1: Where is your factory ?
A1: Our factory is located in DONGGUAN City, GUANGDONG Province, China.
Q2: How long has your company been doing this?
A2: More than 20 years.We are not only produce fiber optical cable but also produce optical fiber and related tools .
Q3: How about the cable's quality?
A3: Our factory is approved by ISO9001 quality management system and including STARF,CE,CPR,TLC certifications at list.We have a series of equipment and instruments to make sure reliable quality of our products.
Q4: Can you produce cable as our requirements?
A4: Of course .We can supply different types of products according to your requirements with reasonable prices .
Q5: Do you accept the OEM order and how many is the MOQ?
A5: Yes,we warmly welcome your OEM order.To achieve customer's satisfaction,we accept sample order, even one Piece.
